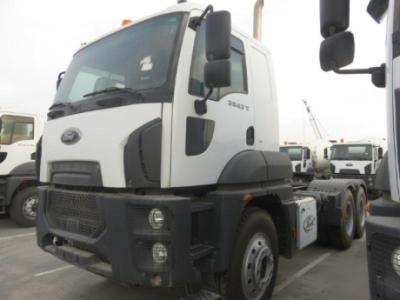

Ford Cargo 3543T MT - Dubai

FORD TRUCKS 3543T DC EURO3
Basic Features
Vehicle Type Tractor
Axle 6x4
Emission Euro 3
Cabin Type Day Cab
Wheelbase (mm) 3800
Engine
Type Ecotorq 12.7 litre
Displacement [cc] 12740
Diameter x Stroke 130 mm x 160 mm
Power 430 PS (316,3 kW) / 1800 rpm
Torque 2150 Nm / 1000-1300rpm
Compression Ratio 17 +/- 0,5 : 1
Oil Filling Volume [l] 50 L
Coolant volume [l] 37 l (57 L with Intarder)
Transmission
Clutch 2 x 430mm Twin Clutch
Manual Transmission ZF 16S 2530
Steering
Power Assisted Single Circuit
Chassis
Chassis thickness [mm] 10 mm with Reinforcement
Chassis Strength [MPa] 500 MPa
Suspension (Front/Rear) Parabolic Leaf Springs / Parabolic Tandem Suspension
Axle Single Reduction
Axle Ratio 4,87
5th Wheel 1400 mm / 3,5 mm King Pin
Tyres 315/80 R 22,5 & 12.00R24
Wheel Rim 22,5 x 9 Steel
Braking System
Brakes (Front / rear) (0.mm x mm. Length) 410 X 200, Z-cam Brake System
Braking System Dual Brake Circuit – Air Processing Unit with Integrated Oil Seperator and Heater
Engine Brake Power max. 340 kW (Engine Level)
Intarder Power (Optimal) max. 600kW / continuous 160kW
Electrical System
Battery 180 Ah
Alternator / Starter Motor 130 A / 6,5 kW
Tanks
Fuel Tank 400 L Steel
Dimensions (mm)
Front Overhang 1500
Wheelbase 3800
Overall Length 7460
Distance between 2nd and 3th wheel centers 1350
Overall Cab Length 2210
Overall Vehicle Height 3350
Overall Vehicle Width (excluding Mirrors) 2540
Chassis Width 770
Rear Overhang 810
Useful Chassis Length 5310
Chassis Height-Front 285
Chassis Height-Rear 285
Ground Clearance-Front 450
Ground Clearance-Rear 410
Turning Radius 8790

Weights (kg) 1. Axle 2. Axle 3. Axle Total
Technically Permissible Weights 8000 13400 13400 32000
Kerb Weight 5244 2557 2435 10236
Payload 2756 10843 10965 21765
GVW 80000

If interested, please contact Ms. Maha on this number 0556792204.
